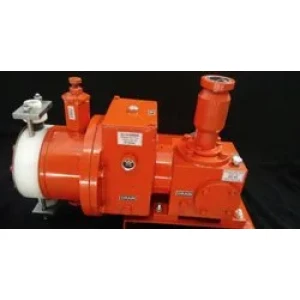

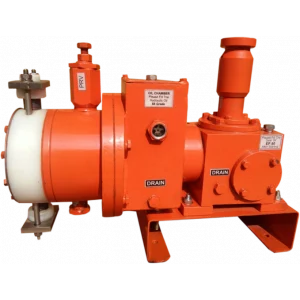

Hydraulic Operated Diaphragm Dosing Pump

AvailabilityIn Stock
CategoryDiaphragm Pumps, Metering Pumps, Chemical Dosing Pumps, Dosing Pumps, Dosing Pump Spare Parts
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Hydraulic Operated Diaphragm Dosing Pump Details

@Chemical Dosing Pump

Type: Hydraulically Operated Diaphragm Dosing Pumps.

Application Sectors:

Chemical Effluent / Water TreatmentPetro-Chemical
Sewage TreatmentPulp & Paper
Power PlantFood
Pharmaceutical PlantBeverages
Oil PlantSugar Industries
PaintMetal & Steel Plant
Marine

Standard Models:

SR. NO.MODEL NOFLOW RATE (LPH)PRESSURE (BAR)
01PRHYD - 10 - 15080
02PRHYD - 20 - 75095
03PRHYD - 30 - 3000200
04PRHYD - 40 - 7000200

Liquid Contact Materials (Wetted Parts):

SS316 & SS316LSS304
PPPVC
Haste alloy ‘C’OR Any Other Machinable Material

Features:

  • Premix make PRHYD type Diaphragm glandless pumps, with hermitically sealed Diaphragm allow leak free operation.
  • Compact design.
  • Easily handles viscous fluids.
  • Accurate dimensions.
  • Flow rates of 7000 LPH, & High discharge pressures of 200 Kg/sq. cm. can be achieved.
  • Leak free design.
  • All moving parts including plunger is running in oil.
  • Reproducibility (Repeatability) better than +/- 2.5 % of set point.
  • Steady State metering accuracy of + - 1 % of pump output, at single setting of stroke from 10% - 100% (Turn down ratio 10:1).
  • Double diaphragm with rupture indication also available.
  • Inbuilt Pressure Relief & vacuum valve on the hydraulic side to safeguard system.
  • Easily handles viscous fluids. They are compatible with most of fluids.
  • Unlimited dry running capability.
  • Simplex and Multiplex arrangements of pumps available for universal use.
  • Heating or cooling jackets for liquid head is also available.
  • Pump Design, Manufacturing & Performances Test as per International Standard of API 675*
